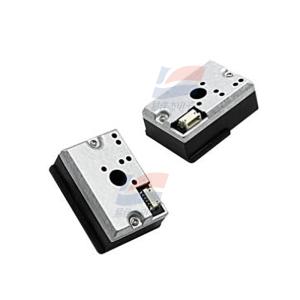

APM3001 Infrared Particle Sensor Low Power Consumption Air Testing

Brand Name : YJJ

Model Number : APM3001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000/pcs/month

Delivery Time : 3-5workingdays

Packaging Details : Standard Package

Power supply voltage : 4.8-5.2V

Working current : 10-12mA

Measurement of particle size : 1-10um

Particle concentration range : 0-1000m3

Contact Now

APM3001 Infrared Particle Sensor Low Power Consumption Air Testing

Infrared particle sensor
• Strong anti-interference ability
• Low power consumption
• Wide measurement range
• Fast response
• Integrated MCU, output concentration value (μg/m3)
• Compact size, length 46.3× width 34.2× height 19mm

Product Description
The infrared particle sensor uses the principle of light scattering to detect the concentration of particles in the air (particle size between 1 and 10 μm). It has a built-in infrared light-emitting diode and a photoelectric sensor. The light emitted by the light-emitting diode will be scattered when passing through the particles. The photoelectric sensor can calculate the concentration of particles in the air by detecting the intensity of the scattered light. The sensor supports the UART/PWM interface to output the measured value.

Specification:

Data refresh rate	1S
Power-on stabilization time	60S
Response time	8S
Lifespan	>5Y
Dimensions	46.3×34.2×19mm
Operating temperature	-20~75℃
Storage temperature	-40~85℃

APM3001 Infrared Particle Sensor Low Power Consumption Air Testing
