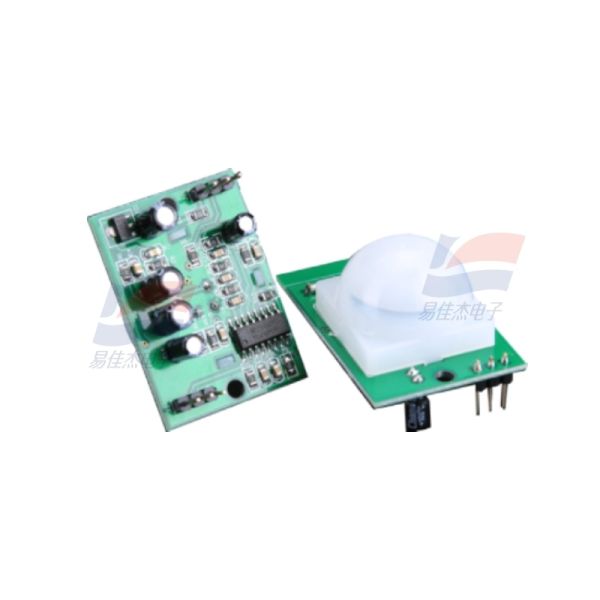

ZRD09 Pyroelectric Infrared Sensor Module Intelligent Thermal Sensing Human Body Sensing Switch Element

  • 1
  • 2
  • 3

Model Number : ZRD09

Place of Origin : CN

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Working Voltage : 5~20 V DC

Static Current : ≤ 55 μA

Sensitivity : ≥ 2200 V/W

Noise Peak : < 70 mV

Sensing Distance : ≤ 7 m

Operating Temp : -15°C~60°C

Contact Now

ZRD09 Pyroelectric Infrared Sensor Module Intelligent Thermal Sensing Human Body Sensing Switch Element

  1. Product Features:

  3. 1. Pyroelectric PIR core + Fresnel lens for reliable human motion detection with low false triggers.
  4. 2. Wide 5–20 V DC input and ultra‑low static current (≤55 μA) for battery‑powered devices.
  5. 3. Repeatable/non‑repeatable trigger modes and adjustable time delay (5 s–10 min) for custom behavior.
  6. 4. Optional photo‑resistor interface for light‑activated sleep (e.g., off during daylight).
  7. 5. Built‑in voltage regulation and noise suppression for stable output in harsh environments.

  8. Applications:

  9. 1. Smart Home Switches/Lighting: Auto‑on/off for hallway lights, bathroom fans, and under‑cabinet lighting.
  10. 2. Security Alarms: Core detector for home/office burglar alarms and perimeter monitoring.
  11. 3. Industrial Automation: Hands‑free operation for assembly lines, conveyor belts, and access control.
  12. 4. Energy‑Saving Systems: Occupancy sensing to cut power to idle equipment (vending machines, displays).
  13. 5. Consumer Electronics: Automatic wake‑up for smart displays, toilets, and small appliances.
  14. 6. IoT Devices: Integration with Arduino/ESP32 for remote motion alerts via Wi‑Fi/Bluetooth.

  15. 7. Compact form factor for seamless integration into switches, lamps, and sensors.

Model ZRD09
Detection Principle Pyroelectric infrared (PIR) with Fresnel lens
Target Human body motion (8–14 μm infrared radiation)
Output Type TTL level (high = detected, low = idle)
Working Voltage 5–20 V DC
Static Current ≤ 55 μA (@5 V)
Sensitivity ≥ 2200 V/W
Noise Peak < 70 mV
Sensing Distance ≤ 7 m (typical, 25°C, 60% RH)
Sensing Angle 110° (horizontal)
Trigger Modes Repeatable (default) / Non‑repeatable (jumper‑selectable)
Time Delay (Adjustable) 5 s – 600 s
Blocking Time 3–4 s (default)
Operating Temp -15°C – 60°C
Operating Humidity ≤ 85% RH (no condensation)
Dimensions 38 × 20 × 15 mm
Pin Pitch 2.54 mm (3‑pin)
Lifespan ≥ 5 years (typical in indoor environments)
